Delco Remy high-output alternators offer improved efficiency ratings that lead to measurable fuel savings for fleets. The brushless design of Delco Remy high-output alternators reduces the number of moving components that result in decreased wear and tear. Delco Remy is well known in the industry for heavy-duty starters and alternators, accompanied by dependable and knowledgeable support.
SPECIFICATIONS
Engine Size: 12V up to 8 Liters
Rotation: Clockwise
Mounting: 12V: SAE #1
Pinion Data: 10 Tooth, 10-12 Pitch; 10 Tooth, 8-10 Pitch; 9 Tooth, Mod 3-metric
Output: 12V peak at 4.1kW
Weight: 8.4 kg / 18.5 lbs
Diameter: 90 mm / 3.5 inches
Engagement System: Positive shift engagement
SPECIFICATIONS
Engine Size: up to 9 Liters
Rotation: Clockwise
Mounting: SAE #1, SAE #3
Pinion: 10 Tooth, 8-10 Pitch; 12 Tooth, 8-10 Pitch
Output: 12V peak at 4.7 kW
Temperature Rating: 125°C/257°F
Weight: 10 kg / 22.04 lbs
Overall Length: 355 mm/13.98 inches
Diameter: 95 mm / 3.74 inches
Motor Type: Wound Field, Planetary Gear
Engagement System: Electrical Soft Start
Pinion Support: Noseless
SPECIFICATIONS
Engine Size: up to 13 Liters
Rotation: Clockwise
Mounting: SAE #3
Pinion: 12 Tooth, Mod 3-metric
Output: 4.3 kW peak at 12V
Weight: 12.9 kg / 28.44 lbs
Diameter: 100 mm / 3.94 inches
Heavy Duty Drive: Electrical Soft-Start, Engagement System, Overrunning Clutch
SPECIFICATIONS
Engine Size: 12V up to 16 Liters, 24V up to 16 Liters
Rotation: Clockwise
Mounting: 12V: SAE #1, SAE #3; 24V: SAE #3
Pinion: 11 Tooth, 6-8 Pitch; 12 Tooth, 8-10 Pitch; 12 Tooth, Mod 3-metric
Output: 12V peak at 7.3kW, 24V peak at 9.0kW
Weight: 14 kg / 30.8 lbs
Diameter: 114 mm / 4.5 inches
Heavy Duty Drive: Electrical Soft-Start, Engagement System, Overrunning Clutch
SPECIFICATIONS
Engine Size: 12V up to 14.8 Liters, 24V up to 16.0 Liters
System Voltage: 12 or 14.0 Volts
Rotation: Clockwise; Counterclockwise
Mounting: SAE #1, SAE #3
Pinion: 11 Tooth, 6-8 Pitch; 12 Tooth, 8-10 Pitch; 13 Tooth, 8-10 Pitch; 11 Tooth, MOD 3 (Metric); 12 Tooth, MOD 3 (Metric)
Peek Output: 12V peak at 7.3kW, 24V peak at 8.0kW
Battery Internal Resistance: 12V 2 m0hm; 24V 8 m0hm
Weight: 14 kg / 58 lbs
Diameter: 130 mm / 5.12 inches
Overall Length: 496 mm / 19.53 inches
Motor Type: Wound Field; Straight Drive
Pinion Support: Nose
Drive Design: Two-piece rotatable drive housing (12 or 24 positions); Positive Engagement; Rubber Shock Absorber
Optional Features: Jumpstart Protection; (meets SAE J1493); Over-Crank Protection
SPECIFICATIONS
Engine Size: 12V up to 16.0 Liters, 24V up to 18 Liters
Rotation: Clockwise (viewing pinion end)
Mounting: SAE #1, SAE #3 and customer specific as requires
Pinion: 11 Tooth, 6-8 Pitch; 12 Tooth, 8-10 Pitch; 12 Tooth, MOD 3-metric
Output: 12V peak at 7.3kW, 24V peak at 9.0kW
Weight: 14.4 kg / 31.75 lbs
Diameter: 115 mm / 4.53 inches
Heavy Duty Drive: Electrical Soft-Start Engagement System Overrunning Clutch
Starting Torque with Gear Ratio: 4.3:1
SPECIFICATIONS
Performance Output: 12V 100 Amps; 12V 130 Amps; 12V 145 Amps; 12V 160 Amps; 24V 70 Amps; 12V 110 Amps
Rotation: Clockwise
Maximum Speed: 10,000 RPM Continous; 12,000 RPM Intermittent
Temperature Rating: 105°C/221°F
Mounting: J180 Hinge Mount Pad; Mount Pad
Weight: 7.7 kg / 16.2 lbs
SPECIFICATIONS
Performance Output: 12V 160 Amps; 12V 180 Amps; 12V 200 Amps; 24V 110 Amps
Rotation: Clockwise
Maximum Speed: 10,000 RPM Continous; 12,000 RPM Intermittent
Temperature Rating: 125°C/257°F
Mounting: J180 Short Hinge Mount; J180 Long Hinge Mount; Pad Mount
Weight: 8.5 kg / 18.7 lbs
SPECIFICATIONS
Performance Output: 12V 170 Amps; 24V 105 Amps
Rotation: Clockwise or Counterclockwise
Maximum Speed: 10,000 RPM Continous; 12,000 RPM Intermittent
Temperature Rating: 125°C/257°F
Mounting: J180 Short Hinge Mount; Quad Mount; Pad Mount
Efficiency: 68%
Weight: 11.5 kg / 25.4 lbs
SPECIFICATIONS
Performance Output: 12V/215 Amps
Rotation: Clockwise
Maximum Speed: 8,000 RPM Continous; 10,000 RPM Intermittent
Temperature Rating: 130°C/266°F
Mounting:Pad Mount
Efficiency: 72%
Weight: 13.8 kg / 30.4 lbs
Stator Diameter: 5.98 in / 152 mm
Length: 9.99 in / 253.8 mm
SPECIFICATIONS
Performance Output: 12V / 240 Amps; 12V / 275 Amps; 12V / 300 Amps; 12V / 320 Amps
Rotation: Clockwise
Maximum Speed: 8,000 RPM Continous; 10,000 RPM Intermittent
Temperature Rating: 240 & 275 Amp: 125°C/257°F; 300 & 320 Amp: 115°C/239°F
Mounting: J180 Short Hinge Mount, J180 Long Hinge Mount, Pad Mount
Efficiency: 72%
Weight: 14.1 kg / 31 lbs
Stator Diameter: 5.98 in / 152 mm
Length: 9.99 in / 253.8 mm
SPECIFICATIONS
Performance Output: 12V / 430 Amps; 24V / 250 & 275 Amps
Rotation: Clockwise
Maximum Speed: 8,000 RPM Continous; 9,000 RPM Intermittent
Temperature Rating: 250 Amp: 125°C/257°F; 275 Amp: 110°C/230°F; 430 Amp: 93°C/200°F;
Mounting: Pad
Efficiency: 12 Volt: 73%; 24 Volt: 80%
Weight: 19.6 kg / 43.2 lbs
Stator Diameter: 6.9 in / 175 mm
Length: 11.25 in / 288.9 mm
>
Remote Sense: Standard

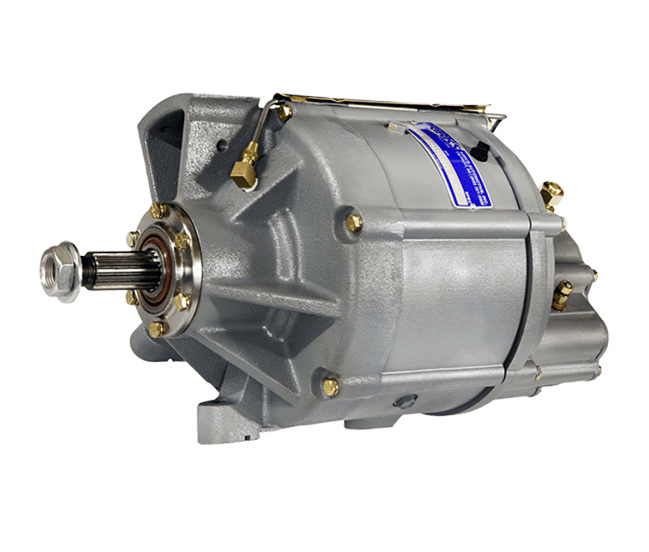

HEAVY DUTY
Voltage: 28V
Output: 270A
Mount: Cradle
Details: Oil-Cooled, Brushless Design, Externally Regulated
HEAVY DUTY
Voltage: 28V
Output: 450A
Mount: Cradle
Details: Oil-Cooled, Brushless Design, Externally Regulated
