C.E. Niehoff Military Applications

C.E. Niehoff is a proud premier alternator provider for the U.S. Military as well as many of our global allies.

C.E. Niehoff Military Alternators

Military Alternator

N10XX

Max Power: 1.7 kW

Voltage: 28

Dual Voltage Capable: Yes

Max Available Output Amps: 60

Mounting Options: Spool, J180 Hinge, Pad, Rail

Smart Regulator: Yes

Shell Diameter: 5.5″ / 13.97 cm

Length Exel. Mounting Features: 6″ / 15.24 cm

Weight: 20 lbs/ 9 kg

Item Description
N1025 ALT 24V 50A NG IR
N1025-1 ALT 24V 50A NG IR W/N3036 REGULATOR
N1025-2 ALT 24V 50A NG IR W/N3036 REGULATOR + N4042 PULLEY
N1026 ALT 28V 50A NG IR
N1026-1 ALT 28V 50A NG IR W/N3036 REGULATOR
N1026-2 ALT 28V 50A NG IR W/N3036 REGULATOR + N4025 PULLEY
N1084 ALT 12V 60A IG IR

Military Alternator

N11XX

Max Power: 4.0 kW

Voltage: 28

Dual Voltage Capable: Yes

Max Available Output Amps: 140

Mounting Options: Custom Hinge, J180 Hinge, Pad,

Rail

Smart Regulator: Yes

Shell Diameter: 6.5″ / 16.51 cm

Length Exel. Mounting Features: 10″ / 25.4 cm

Weight: 40 lbs/ 18 kg

Item Description
N1126 ALT 28V 100A
N1126-1 ALT 28V 100A W/N3034 REGULATOR
N1126-2 ALT 28V 100A W/N3204 REGULATOR
N1127 ALT 28V 140A
N1127-3 ALT 28V 140A W/N3042 REGULATOR + N4008 PULLEY
N1127-4 ALT 28V 140A W/N3045 REGULATOR
N1127-5 ALT 28V 140A W/N3048 REGULATOR
N1128 ALT DUAL VOLT 28V/140A 14V/50A
N1132 ALT 28V 170A
N1132-1 ALT 28V 170A W/N3046 REGULATOR
N1133 ALT 28VDC 140A
N1133-1 ALT 28VDC 140A W/N3048
N1134 ALT 28V 100A
N1134-1 ALT 28V 100A W/N3045 REGULATOR
N1135 ALT 28V 140A
N1135-1 ALT 28V 140A WREG

Military Alternator

N12XX

Max Power: 9.4 kW

Voltage: 28, 56

Dual Voltage Capable: Yes

Max Available Output Amps: 345

Mounting Options: Custom Hinge, J180 Hinge, Pad,

Rail

Smart Regulator: Yes

Shell Diameter: 8.0″ I 20.32 cm

Length Exel. Mounting Features: 10.5” / 26.67 cm

Weight: 68 lbs/ 31 kg

Item Description
N1205 ALT 28V 200A NG XR
N1206 ALT 28V 200A NG XR
N1211 ALT 28V 200A NG XR
N1211-2 ALT 28V 200A NG XR W/N3106 REGULATOR
N1211-6 ALT 28V 200A NG XR W/N3245 REGULATOR + N9238
N1216-1 ALT DUAL VOLT 28V/200A 14V/200A W/N3029 REGULATOR
N1224-1 ALT DUAL VOLT 28V/260A 14V/140A W/N3221
N1224-2 ALT DUAL VOLT 28V/260A 14V/140A W/N3229
N1224-3 ALT DUAL VOLT 28V/260A 14V/140A W/N3232
N1224-4 ALT DUAL VOLT 28V/260A 14V/140A W/N3232 /N4014
N1224-5 ALT DUAL VOLT 28V/260A 14V/140A W/N3221 /N4014
N1225-1 ALT DUAL VOLT 28V/200A 14V/50A NG XR W/N3135 REGULATOR
N1225-3 ALT DUAL VOLT 28V/200A 14V/50A NG XR W/ N3225 REGULAOR
N1225-4 ALT DUAL VOLT 28V/200A 14V/50A NG XR W/ N3281 REGULATOR
N1228-1 ALT DUAL VOLT 28V/200A 14V/200A W/N3123 REGULATOR
N1233 ALT 28V 260A
N1233-1 ALT 28V 260A W/N3140 REGULATOR
N1233-2 ALT 28V 260A W/N3140 REGULATOR + N4000 PULLEY
N1235-1 ALT 28V 150A 600 SER W/N3134 REGULATOR + N7066
N1235-2 ALT 28V 150A 600 SER W/N3142 REGULATOR + N7066
N1239 ALT 28V 230A NG XR
N1239-1 ALT 28V 230A NG W/N32113 REGULATOR
N1240 ALT 28V 260A W/ N7065 FAN GUARD.
N1240-1 ALT 28V 260A W/N3218 REGULATOR + N7065 FAN GUARD
N1240-2 ALT 28V 260A W/N3218 REGULATOR & N4007 PULLEY & N7065 PULLEY
N1240-3 ALT 28V 260A W/N3218 REGULATOR & N4010 PULLEY & N7065 FAN GUARD
N1240-4 ALT 28V 260A W/N3218 REGULATOR & N7069 FAN GUARD & N4094 PULLEY
N1241 ALT DUAL VOLT 28V/150A 14V/150A 600 SER
N1241-1 ALT DUAL VOLT 28V/150A 14V/150A 600 SER
N1243 ALT 28V 260A
N1243-1 ALT 28V 260A W/N3218 REGULATOR
N1243-2 ALT 28V 260A W/N3218 REGULATOR + N4028 PULLEY
N1243-3 ALT 28V 260A W/N3244 REGULATOR
N1243-4 ALT 28V 260A W/N3263 REGULATOR
N1243-5 ALT 28V 260A W/N3263 REGULATOR + N4057 PULLEY
N1243-7 ALT 28V 260A W/N3287 REGULATOR
N1245-1 ALT 28V 260A NG XR W/N3043 REGULATOR
N1245-2 ALT 28V 260A NG XR W/N3043 REGULATOR + N4029 PULLEY
N1245-5 ALT 28V 260A NG XR W/N4034 REGULATOR + N7518 BRACKET
N1257-1 ALT DUAL VOLT 28V/150A 14V/150A W/N3286 REGULATOR
N1259 ALT 28V 260A
N1259-1 ALT 28V 260A W/N3293 REGULATOR + N4028 PULLEY
N1263 ALT 28V 345A NG XR
N1263-1 ALT 28V 345A NG XR W/N3043 REGULATOR
N1263-2 ALT 28V 345A NG XR W/N3261 REGULATOR
N1264 ALT 14V 430A
N1264-1 ALT 14V 430A W/N32108 REGULATOR
N1264-2 ALT 14V 430A W/N32108 REG + N4088 PULLEY
N1280-1 ALT 28V 310A NG XR W/N3049 REGULATOR + N4052 PULLEY
N1281-1 ALT 28V 310A NG XR W/N4052 PULLEY
N1281-2 ALT 28V 310A NG XR W/N3031 REGULATOR + N4052 PULLEY
N1282-1 ALT 28V 360A ISOL W/N32104 REGULATOR

Military Alternator

N13XX

Max Power: 12.6 kW

Voltage: 28

Dual Voltage Capable: Yes

Max Available Output Amps: 450

Mounting Options: Custom Hinge, Pad, Rail

Smart Regulator: Yes

Shell Diameter: 8.0″ I 20.32 cm

Length Exel. Mounting Features: 12″ / 30.48 cm

Weight: 86 lbs/ 39 kg

Item Description
N1301-1 ALT 28V 220A NG XR W/N3001 REGULATOR
N1301-4 ALT 28V 220A NG XR W/N3001 REGULATOR + N9443 BRACKET
N1304 ALT 28V 220A NG XR
N1304-1 ALT 28V 220A NG XR W/N3009 REGULATOR
N1307 ALT 28V 280A
N1313 ALT DUAL VOLT 28V/300A 14V/300A
N1313-4 ALT DUAL VOLT 28V/300A 14V/300A W/N3222 REGULATOR
N1313-5 ALT DUAL VOLT 28V/300A 14V/300A W/N3222 REGULATOR + 4001 PULLEY
N1313-6 ALT DUAL VOLT 28V/300A 14V/300A W/N3222 REGULATOR + 4002 PULLEY
N1313-7 ALT DUAL VOLT 28V/300A 14V/300A W/N3267 REGULATOR + N4001 PULLEY
N1326-1 ALT 24V 300A NG XR W/N3007 REGULATOR
N1335 ALT 28V 300A
N1335-1 ALT 28V 300A W/N3234 REGULATOR
N1335-2 ALT 28V 300A W/N3234 REGULATOR + N4036 PULLEY
N1336-1 ALT 28V 330A ISOL GRND W/N3253 REGULATOR
N1336-2 ALT 28V 300A W/N3253 REGULATOR + N9743 + N9658
N1379 ALT 28V 280A NG XR
N1379-1 ALT 28V 280A NG XR W/N3129 REGULATOR
N1380 ALT 28V 220A NG XR
N1380-1 ALT 28V 220A NG XR W/N3104 REGULATOR + N9217
N1380-2 ALT 28V 220A NG XR W/N3109 REGULATOR + N9217
N1380-3 ALT 28V 220A NG XR W/N3137 REGUALTOR + N9217
N1380-4 ALT 28V 220A NG XR W/N3139 REGULATOR + N7107 + N9217
N1380-5 ALT 28V 220A NG XR W/N3202 REGUALTOR + N9637 + N9217
N1382 ALT 28V 280A
N1382-1 ALT 28V 280A W/N3104 VOLTAGE REGULATOR
N1382-2 ALT 28V 280A W/N3122 VOLTAGE REGULATOR
N1382-3 ALT 28V 280A W/N3202 VOLTAGE REGULATOR
N1382-4 ALT 28V 280A W/N3109 VOLTAGE REGULATOR
N1385 ALT 28V 350A
N1385-1 ALT 28V 350A W/N4009 PULLEY
N1385-2 ALT 28V 350A W/N9659 + N9658
N1385-3 ALT 28V 350A W/N4046 PULLEY
N1385-4 ALT 28V 350A W/N3255 REGULATOR + N7498 + N7065
N1385-5 ALT 28V 350A W/N3235 REGULATOR + N7498 + N7065
N1385-6 ALT 28V 350A W/N3235 REGULATOR + N7498 + N7065
N1387 ALT DUAL VOLT 28V/210A 14V/50A XR
N1387-1 ALT DUAL VOLT 28V/210A 14V/50A XR W/N3225 REG + N7192
N1387-2 ALT DUAL VOLT 28V/210A 14V/50A XR W/N3135 REG + N7192
N1388 ALT 28V 300A NG XR
N1388-1 ALT 28V 300A NG XR W/N3012 REGULATOR
N1390-1 ALT 28V 360A W/N3269 REGULATOR
N1390-2 ALT 28V 360A W/N3269 REGULATOR + N4060 PULLEY
N1390-3 ALT 28V 360A W/N3269 REGULATOR + N4065 PULLEY
N1392-1 ALT 28V 450A W/N3295 REGULATOR
N1392-2 ALT 28V 450A W/N3295 REGULATOR + N4081 PULLEY
N1393-1 ALT DUAL VOLT 28V/450A 14V/140A W/N3295 REG
N1393-2 ALT DUAL VOLT 28V/450A 14V/140A W/N3295 REG + N4086 PULLEY

Military Alternator

N14XX

Max Power: 20.4 kW

Voltage: 28

Dual Voltage Capable: Yes

Max Available Output Amps: 730

Mounting Options: 4 Point

Smart Regulator: Yes

Shell Diameter: 9.75″ I 24.765 cm

Length Exel. Mounting Features: 11.5″ / 29.21 cm

Weight: 72 lbs/ 33 kg

Item Description
N1450 ALT 28V 400A NG XR
N1450-1 ALT 28V 400A NG XR W/N3227 REGULATOR
N1460 ALT 28V 550A NG XR
N1460-1 ALT 28V 400A NG XR W/ N32100 REGULATOR + N7592
N1460-2 ALT 28V 550A NG XR W/ N32100 REGULATOR + N7594

Military Alternator

N15XX

Max Power: 7.6 kW

Voltage: 28

Dual Voltage Capable: Yes

Max Available Output Amps: 270

Mounting Options: Custom Hinge, J180 Hinge, Pad,

Rail

Smart Regulator: Yes

Shell Diameter: 7. 75″ I 19.685 cm

Length Exel. Mounting Features: 8.5″ I 21.59 cm

Weight: 47 lbs/ 21 kg

Item Description
N1502 ALT 28V 100A
N1502-2 ALT 28V 100A W/N9552 FAN GUARD
N1503 ALT 28V 100A
N1505 ALT DUAL VOLT 28V/100A 14V/50A XR
N1505-1 ALT DUAL VOLT 28V/100A 14V/50A XR W/N3135 REGULATOR
N1505-4 ALT DUAL VOLT 28V/100A 14V/50A XR W/N3281 REGULATOR
N1508 ALT 28V 200A
N1508-1 ALT 28V 200A W/N3209 REG
N1511 ALT DUAL VOLT 28V/100A 14V/100A
N1511-1 ALT DUAL VOLT 28V/100A 14V/100A W/N3207 REGULATOR
N1514-1 ALT 28V 230A XR W/N3278 REG
N1514-2 ALT 28V 230A XR W/N3278 REG / N4028 PULLEY

Military Alternator

N16XX

Max Power: 23.0 kW

Voltage: 28, 270

Dual Voltage Capable: Yes

Max Available Output Amps: 820

Mounting Options: Custom Hinge, J180 Hinge, Rail

Smart Regulator: Yes

Shell Diameter: 9.0″ I 22.86 cm

Length Exel. Mounting Features: 15.5″ / 39.37 cm

Weight: 115 lbs / 52 kg

Item Description
N1601 ALT 28V 400A W/O REG
N1601-1 ALT 28V 400A W/N3107 REGULATOR
N1601-2 ALT 28V 400A W/N3211 REGULATOR
N1601-3 ALT 28V 400A W/N3211 REGULATOR /N4003 PULLEY
N1601-4 ALT 28V 400A W/N3107 REGULATOR /N4005 PULLEY
N1601-5 ALT 28V 400A W/N4003 PULLEY
N1601-6 ALT 28V 400A W/N3257 REGULATOR
N1601-7 ALT 28V 400A W/ N4077 PULLEY + N9815 BRKT
N1601-8 ALT 28V 400A W/N4082 PULLEY
N1602 ALT DUAL VOLT 28V/400A 14V/50A
N1602-1 ALT DUAL VOLT 28V/400A 14V/50A W/N3118 REGULATOR
N1602-2 ALT DUAL VOLT 28V/400A 14V/50A W/N3223 REGULATOR
N1602-3 ALT 28V 400A W/N3237 REGULATOR
N1602-4 ALT DUAL VOLT 28V/400A 14V/50A W/N3223 REGULATOR + N7164 PULLEY
N1602-5 ALT DUAL VOLT 28V/400A 14V/50A W/N3118 REGULATOR + N4033 PULLEY
N1602-6 ALT DUAL VOLT 28V/400A 14V/50A W/N3118 REGULATOR + N4005 PULLEY
N1602-7 ALT 28V 400A W/N3245 REGULATOR
N1602-8 ALT DUAL VOLT 28V/400A 14V/50A W/N3223 REGULATOR + N4067 + N9789
N1606 ALT DUAL VOLT 28V/570A 14V/50A
N1606-1 ALT DUAL VOLT 28V/570A 14V/50A W/N32115 REGULATOR
N1607 ALT 28V 500A
N1609 ALT 28VDC 570A
N1609-1 ALT 28VDC 570A W/N3240 REGULATOR
N1609-2 ALT 28VDC 570A W/N3240 REGULATOR + N4038 PULLEY
N1609-3 ALT 28VDC 570A W/N3243 REGULATOR
N1609-4 ALT 28VDC 570A W/N3243 REGULATOR + N4048 PULLEY
N1609-8 ALT 28VDC 570A W/N3240 REGULATOR + N4073 PULLEY
N1609-9 ALT 28VDC 570A W/N3273 REGULATOR + N9518
N1610 ALT DUAL VOLT 28V/400A 14V/50A
N1610-1 ALT DUAL VOLT 28V/400A 14V/50A W/N32115 REGULATOR
N1611 ALT 28V 570A
N1615 ALT 28V 570A
N1615-1 ALT 28V 570A W/N3240 REGULATOR
N1617 ALT 28VDC 570A
N1622-1 ALT 28V 525A W/N3284 REGULATOR
N1624 ALT 28V 550A
N1629 ALT 28V 740A
N1629-1 ALT 28V 740A W/N3299 REGULATOR
N1629-2 ALT 28V 740A W/N32120 REGULATOR
N1630-1 ALT 28V 740A W/N32102 REGULATOR
N1633 ALT 28V 600A
N1633-1 ALT 28V 600A W/N3299 REGULATOR
N1633-2 ALT 28V 600A W/N3299 REG & N4087 PULLEY
N1633-3 ALT 28V 600A W/N32120 REGULATOR
N1633-4 ALT 28V 600A W/N32120 REGULATOR & N4087 PULLEY
N1634 ALT 28V 740A
N1634-1 ALT 28V 740A W/N3299 REGULATOR
N1634-2 ALT 28V 740A W/N32120 REGULATOR
N1638 ALT 28V 775A
N1638-1 ALT 28V 775A W/N2028
N1640 ALT 28V /14V 740A/50A
N1640-1 ALT 28V /14V 740A/50A W/N32116 REGULATOR
N1650 ALT 28V 570A
N1650-1 ALT 28V 570A W/N3283 REGULATOR
N1650-2 ALT 28V 570A W/N3283 REGULATOR + N4074 PULLEY
N1680 ALT 270V 50A
N1680-1 ALT 270V 50A W/N4048 PULLEY

Military Alternator

N17XX

Max Power: 26.8 kW

Voltage: 28, 600

Dual Voltage Capable: Yes

Max Available Output Amps: 960

Mounting Options: Rail

Smart Regulator: Yes

Shell Diameter: 10.0· / 25.4 cm

Length Exel. Mounting Features: 15.5″ / 39.37 cm

Weight: 155 lbs/ 70 kg

Item Description
N1705 ALT 28V 910A
N1720 ALT 28V 960A
N2001 POLARITY PROTECTION DEVICE
N2003 LOAD BATTERY
N2003-1 LBCD W/CONN PROTECTION CAP
N2004 ISOLATOR BATTERY
N2005 ELECTRIC POWER MANAGER
N2008 ISOLATOR 500A
N2010 ISOLATOR BATTERY DUAL 350A
N2012 ISOLATOR BATTERY 330A
N2013 ISOLATOR BATTERY 600A
N2015 ISOLATOR BATTERY DUAL 350A
N2016 ISOLATOR BATTERY 1000A MAX
N2018 ISOLATOR BATTERY
N2020 TRANSIENT PROTECTION DEVICE
N2021 TRANSIENT PROTECTION DEVICE
N2026 ISOLATOR BATTERY 100V 80A
N2027 VOLTAGE FILTER 28V
N2030 BI-DIRECTIONAL CURRENT SENSOR ± 600 AMPS 28V DC
N2081 270V DAMPER DEVICE

Power Management Devices

Power Management Device

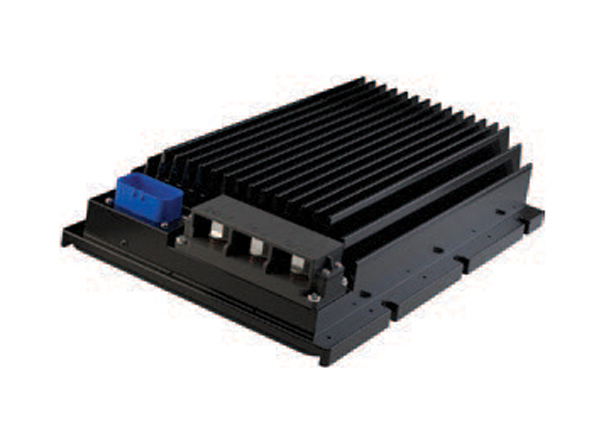

Battery Equalizer
  • 18V-32V DC input voltage
  • (Input voltage/2) ± 2% output voltage
  • 125A output current
  • -40°C to +90°C operating temp
  • Full power (No de rating): -40°C to +70°C
  • 96% peak efficiency
  • 12.5″ X 8.5″ X 2.8″ 31.75cm x 21.6cm x 7.11cm
  • 10.2 lbs / 4.6 kg

Power Management Device

Electronic Power Manager(EPM)
  • Automatic electronic battery disconnect switch
  • Protected 28V and 14V auxilliary outputs with diagnostic LED’s
  • Automatic reverse poliarity protection
  • Limp home mode capable
  • Low battery voltage indicator
  • J1939 Communication: battery voltages I temperature / amperage / faults

Power Management Device

DC to DC Converter
  • 18V-32V DC input voltage
  • 14V ± 0.2V output voltage
  • 125A output current -40°C to +90°C operating temp
  • Full power (No de rating): -40°C to +70°C
  • 96% peak efficiency
  • 12.5″ X 8.5″ X 2.8″ 31.75cm x 21.6cm x 7.11cm
  • 10.2 lbs / 4.6 kg

Power Management Device

Battery Isolator
  • 1 00V / 350A-1 000A input range
  • Prevent current flow between power distribution branches, battery packs or backup power sources
  • -40°C to +65°C Ambient temperature range without fan
  • Supports independent power distribution branches
  • Voltage filtering
  • Multiple configurations

Power Management Device

Smart Battery Sensor
  • 14V: 0.0V to 20.0V±0.1 % 28V: 0.0V to 40.0V±0.1 % measured battery voltage
  • 0.5A to 600A (±1.0%) measured current
  • -40°C to +105°C measured temperature
  • Calculated parameters (est): Total number of batttery charging cycles / total current (amp/hrs) In and out of battery
  • Operating temp: -40°C to +105°C
  • J1939 vehicle backbone connection and communication via available harness

Power Management Device

Transient Protection Device(TPD)
  • 280A suppression capability at 28V for excess electrical system energy
  • 100A Continuous pass-thru current 700A Inrush current (Duration < 0.5 seconds)
  • Customizable device thresholds
  • High current input and output terminals J1939 Communications
  • System status LED

Power Management Device

Load and Battery Control Device (LBCD)
  • 28V/14V dual voltage input
  • 200A max continuous current on either input
  • -50°F to 167°F operating temperature
  • Charging system indication signal and LED mode Indicator
  • Battery disconnect signal
  • Auto start/stop
  • Reverse polarity protection

Power Management Device

Voltage Filter
  • Improves vehicle electrical system power quality should it be necessary to continue to operate in the absence of batteries
  • Pre-charging and post discharging circuits, controlled by the vehicle’s ignition signal
  • LED indicator provides visual feedback

Trusted by Fleet & Transit Industry Professionals

Browse our complete inventory to find the exact part you’re looking for. We have a variety of products in stock and ready for you.

Shop Our Products Request a Quote
